What is Bronze Wrapped Bushings
Wrapped bronze bushings are made entirely from phosphor bronze CuSn8. CuSn8 is characterized by the purity of the alloy with only a very low level of impurities. Custom Plain Bearings Components. Components manufactured to your exact specifications.
-
![MG-090 Bronze Wrapped Bushings]()

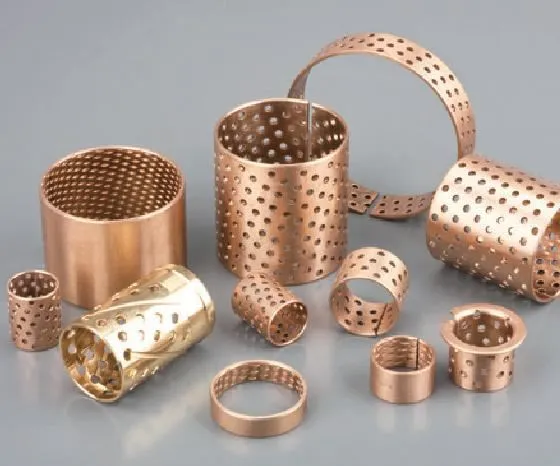

MG-090 Bronze Wrapped BushingsRead MoreMG-090 bronze self-lubricating bearings use a kind of high density bronze alloy of special
-
![MG-8 Steel Bronze Powder With PEEK/PTFE Marginal Bearings]()
MG-8 Steel Bronze Powder With PEEK/PTFE Marginal BearingsRead MoreMetal-polymer composite bearings; Bimetallic composite bearingsMetallic self lub.bearings; Plastic
-
![MG-5 SL Cast Bronze With Graphite Plug]()
MG-5 SL Cast Bronze With Graphite PlugRead More◆ Introduction: This material provides a maintenance free and low friction bearing solution,
-
![MG-800 Bimetal Wrapped Bushings]()
MG-800 Bimetal Wrapped BushingsRead MoreProfile Product List Application Feature ◆ Introduction: MG-800 Bimetallic self-lubricating bearing
-
![Bronze Wrapped Bushings]()
Bronze Wrapped BushingsRead MoreProfile Product List Application Feature ◆ Introduction MG-090 bronze self-lubricating bearings use
-
![Bronze Cylindrical Bushings]()
Bronze Cylindrical BushingsRead MoreMG-090 bronze self-lubricating bearings use a kind of high density bronze alloy of special
-
![Bronze Flange Bushings]()
Bronze Flange BushingsRead MoreMarginal bronze bush have flanges or shoulders as options. The flange is designed to aid in
Advantages of Bronze Wrapped Bushings
Long Service Intervals: Wrapped bronze bearings are known for their durability and low maintenance requirements. Their self-lubricating properties contribute to extended service intervals, reducing the need for frequent replacements or maintenance.
Resistance To Impurities: These bearings can withstand contamination from dirt, dust, and other impurities. Their ability to function effectively in dirty environments makes them an ideal choice for applications where high levels of contamination are present.
Suitable For Corrosive Environments: The bronze material used in these bearings is corrosion-resistant, enabling them to perform well in harsh and corrosive environments. This feature makes wrapped bronze bearings a suitable option for various industries, including marine, chemical, and mining.
Suitable For Impact Loads And Vibrations At Low Speeds: Wrapped bronze bearings can effectively handle shock loads and vibrations, especially at low speeds. Their capacity to absorb and dampen vibrations makes them a reliable choice for machinery that experiences frequent impacts or operates at slower speeds.
Good Heat Dissipation: The bronze material used in these bearings has excellent thermal conductivity, allowing for efficient heat dissipation. This property helps maintain a stable operating temperature and prevents overheating, ensuring optimal performance and longer service life.
Wrapped bronze plain bearings are manufactured using a special composition of high-density copper, without holes or grooves, to provide enhanced load capacity and improved fatigue resistance. These features make them an ideal choice for various agricultural and industrial machinery applications.
By opting for made-to-order wrapped bronze plain bearings, you can ensure that the bearings are tailored to your specific requirements, providing optimal performance and reliability for your machinery and equipment.
Bronze Wrapped Bushingswith holes are a type of plain bearing, used in various applications such as automotive, construction, and industrial machinery. These bushings are made from bronze, which is a durable and corrosion-resistant material, making them suitable for use in harsh environments.
A wrapped bronze bush with holes has the following key features:
● Material: The bushing is made from a high-quality bronze alloy, which provides excellent wear resistance and corrosion protection. This ensures a long service life and low maintenance requirements.
● Design: The wrapped bronze bushing is a cylindrical shape, with a solid outer surface and an inner surface that has holes. These holes are filled with lubricant, which helps to reduce friction between the moving parts and prevent wear.
● Self-lubricating: The holes in the wrapped bronze bushing provide a reservoir of lubricant. This enables the bushing to be self-lubricating, reducing the need for additional lubrication during operation. This can help to reduce maintenance requirements and extend the service life of the bushing.
● Versatility: Bronze Wrapped Bushingswith holes can be used in a wide range of applications, including automotive, construction, and industrial machinery. They are suitable for both radial and axial loads and can accommodate a range of shaft sizes and load capacities.
● Easy Installation: These bushings are designed to be easily press-fitted into their housing, which simplifies the installation process and ensures a secure fit.
● Noise Reduction: Bronze Wrapped Bushingswith holes can help to reduce noise and vibration in machinery, due to their ability to absorb and dampen vibrations.
Radial Loads: Most bronze-wrapped bushings are designed to handle radial loads, which are perpendicular to the axis of rotation. The metal back provides the necessary strength to support these loads.
Axial Loads: Some bushings, particularly thrust washers or specially designed bushings, can also handle axial loads, which are parallel to the axis of rotation.
Self-Lubricating Bushings: Bushings infused with materials like graphite or PTFE can operate without external lubrication, which is particularly useful in applications where maintenance is difficult or where contaminants might mix with the lubricant.
Grease-Lubricated Bushings: Bushings that require lubrication often use grease to provide lubrication and help dissipate heat generated by friction. Regular maintenance is needed to ensure the bushing remains properly lubricated.
Oil-Lubricated Bushings: In some high-speed or high-load applications, oil lubrication might be used to cool and lubricate the bushing.
Press-Fit Installation: Bushings are typically press-fit onto a shaft or into a housing. A snug fit is essential to prevent excessive movement and maintain proper alignment.
Heat Expansion: In some cases, the shaft or housing may be heated slightly to expand it slightly, allowing for easier installation of the bushing.
Wear Monitoring: Over time, the bronze sleeve can wear due to friction and particulate contamination. Regular inspection is necessary to monitor the condition of the bushing.
Replacement: When the bushing shows signs of significant wear or if it fails to perform adequately, it should be replaced to prevent equipment downtime and potential damage to other components.
Temperature Resistance: Bronze has good thermal stability, allowing the bushing to perform in a range of temperatures without losing its properties.
Embeddability: If small particles enter the bearing interface, the bronze can embed them, preventing damage to the shaft or housing.
Corrosion Resistance: Bronze alloys are generally resistant to corrosion, which makes these bushings suitable for environments with aggressive chemicals or moisture.
Industrial Equipment: Bronze-wrapped bushings are commonly found in conveyors, pumps, compressors, and other machinery where they support rotating shafts and reduce friction.
Automotive Industry: In automotive applications, they might be used in wheel hubs, constant velocity joints, and other rotating assemblies.
Marine Applications: The corrosion resistance of bronze makes it ideal for marine environments, where bushings can be used in propeller shafts and ship steering systems.
Bronze Wrap Sleeving Maintenance:Keeping Your Equipment Running Smoothly
Learn how to maintain your bronze wrap-around tubing to keep your equipment running smoothly. Learn best practices for cleaning, lubrication and inspection.
Bronze wrap-around tubing is an important part of many types of equipment, providing support and reducing friction between rotating or sliding parts. However, over time, these bushings can wear out or become damaged, leading to reduced performance, increased maintenance costs, and even equipment failure. To avoid these problems and keep your equipment running smoothly, it's important to properly maintain your bronze wound bushings. In this article, we will discuss best practices for cleaning, lubricating and inspecting bronze wound bushings.
Cleaning
One of the most important steps in maintaining bronze winding sleeves is to keep them clean. Dirt, dust, and other debris can build up on the surface of the bushing, leading to increased friction and wear. To clean bronze wound bushings, first remove any visible dirt or debris with a soft bristle brush. Next, gently wipe the surface of the bushing with a non-corrosive cleaning solution and a clean cloth or brush. Be sure to avoid using harsh chemicals or abrasive materials as they may damage the bushing surface.
Lubrication
Proper lubrication is essential to minimize friction and wear on bronze wound bushings. Without adequate lubrication, the bushing may become dry and worn, resulting in friction, increased heat, and the possibility of equipment failure. To lubricate bronze wound bushings, you must first select the proper lubricant for your application. This may vary depending on the temperature, load and speed of the equipment. After selecting the proper lubricant, apply it evenly to the surface of the bushing, making sure to cover all exposed areas. Check the manufacturer's recommendations on how often to lubricate the bushing.
Inspection
Regular inspection is another important part of maintaining your bronze bushings. By inspecting the bushings regularly, you can catch any signs of wear or damage before they become more serious. Begin by visually inspecting the surface of the bushing for any scratches, pits, cracks, or other signs of damage. Additionally, you can use a micrometer or other measuring tool to check the bushing for wear or deformation. If you notice any signs of wear or damage, be sure to replace the bushing as soon as possible.
Split Bronze Bushings: These bushings have a split design that allows them to be easily installed over shafts or into housings. They are particularly useful when there is limited space or when the bearing must be installed around existing components.
Solid Bronze Bushings: Unlike split bushings, solid bushings are a single piece and are typically press-fit onto a shaft. They provide a more rigid fit and are less likely to come loose under heavy loads.
Self-Lubricating Bronze Bushings: These bushings are infused with graphite, PTFE (Teflon), or other solid lubricants, which reduce the need for external lubrication and minimize maintenance. They are well-suited for applications where regular lubrication is impractical.
Thrust Bushings: Designed to handle axial loads, thrust bushings are used in applications where there is a direct force pushing or pulling along the axis of the bushing. They can be either split or solid and may incorporate additional features like flanges for alignment.
Journal Bushings
Also known as sleeve bearings, journal bushings are used to support rotating shafts within a housing. They allow for smooth rotation and can accommodate both radial and some axial loads.
Pillow Block Bushings
These bushings are encased in a block or housing, which provides additional support and protection. Pillow block bushings are easy to install and are commonly used in conveyor systems, pumps, and other industrial equipment.
Custom Bushings
For specialized applications, bronze-wrapped bushings can be custom-engineered to meet specific dimensional requirements, load capacities, and environmental conditions. This could involve altering the size, shape, material composition, or adding unique features like grooves for oil retention.
The Function of Bronze Winding Casing
Corrosion Protection
Copper is characterized by corrosion resistance, so copper casing is suitable for certain environments that are extremely sensitive to corrosion. Copper casing can prevent corrosion caused by chemical reactions and other factors on equipment components, thus extending the service life of the equipment.
Reduce Friction
Copper casing not only has good mechanical properties, but also a small coefficient of friction. Therefore, in some high-speed movement and high friction areas, it is widely used in bearings and guiding parts to reduce friction and wear.
Thermal Conductivity
Copper has good thermal conductivity, so copper bushings are widely used in some mechanical equipment that need to conduct heat. For example, in coolers and engine radiators, copper bushings can effectively conduct heat to ensure the normal operation of the equipment.
Conducting Electricity And Heat
Copper is a good conductive material, so copper tubing can be used for electrical wire connections and electronic components to dissipate heat. In electric circuits, copper tubing can play the role of connecting wires, so as to realize the transmission of electrical energy. In addition, copper tubing has good thermal conductivity, making it suitable for heat dissipation and protection of electronic equipment.
Our Factory
As a specialized manufacturer of self-lubricating bearings & bushings, Marginal Bearing, which was founded in the year 2010, is devoted to researching and producing new self-lubricating bearing materials. After years of effort, we have successfully developed various bearing materials with many different standard bearing sizes, including Three-layer Metal-polymer, self-lubricating bearings, Two-layer, metal-polymer, self-lubricating bearings, Bi-metal composite, self-lubricating bearings, Copper wrapped boundary lubricating bearings, High performance steel bearing, Plastic compound materials bearings and Filament wound composite materials bearings.
Applications covered are automotive industry, construction machinery, plastic manufacturing machinery, OA machinery, material handling equipment, dock side machinery and hydraulic transmission parts. In brief, our bearings can be used wherever there is rotation or linear motion between mechanical parts where lubricating is not allowed or external lubricating accessibility is limited.
With more than 10 years of experience on the researching, producing and promotion of self-lubricating bearings, Marginal Bearing can deliver not only high-performance products but also high-quality services, such as material selection, simulation test, engineering design and installation. The self-lubricating bearing and technology is now performing its beneficiary roles in the traditional industry area and further more providing variable solutions in the industry areas related to our daily life such as the public transportation, entertainment, energy, civil construction, environment protection facilities and aerospace industry.
FAQ
Q: Do bronze bushings need lubrication?
Commonly used in heavy-duty machinery such as construction and mining equipment, these bushings require regular lubrication to maintain their efficiency and longevity.
Q: Is bronze a good bushing material?
Q: What kind of oil do you use for bronze bushings?
Q: What is the difference between PTFE and bronze bushings?
Q: What is the best grease for bronze bushings?
Q: Why use bronze bushings?
Q: What are the advantages of bronze bushings?
Q: Can you over grease a bushing?
Q: What is the best oil for bronze?
Q: What is the best lubricant for bushings?
Q: What is the most durable bushing?
Q: What grade is bronze bushing?
Q: How thick is bronze bushing?
Thick-walled bronze bushings feature a standard wall thickness between 0.0625 and 0.156 inches. In comparison, the wall thickness of a plastic bushing is much thinner, typically anywhere from 0.0468 to 0.0625 inches.
Q: What are bronze bushing made of?
Q: Why is bronze self lubricating?
Q: What are the failure modes of bushings?
Q: What is the lifespan of a bushing?
Q: What is the difference between bronze and brass bushings?
Q: What is the most durable bushing?
Q: How can I make my bushings last longer?
